Bulk materials handling: specifying a conveyor or chute so the design holds up
Most bulk handling failures are decided before any steel is cut, in what the designer was and was not told. What a conveyor or chute design brief has to state about the material, the duty, the interfaces, the environment and maintainability, which standards to call up, and how to review a design against the brief.
Key takeaways
- Bulk materials handling is the engineering of moving solids in bulk: conveyors, transfer chutes, feeders, bins and hoppers, stackers, reclaimers and ship loaders. Most of its failures are decided before any steel is cut, in what the designer was and was not told.
- A design brief needs five things stated honestly: the material across its real range, the duty including surges and the future, the geometry and the interfaces, the environment, and how the equipment will be maintained.
- The material is the part most briefs get wrong. A design specification that says iron ore at eight per cent moisture is not a material description; measured flow properties across the moisture range are.
- Standards such as CEMA, ISO 5048 and AS 4324.1 are the designer's references. The owner's job is to say which apply, then review the design against the brief rather than redesign it.
- A review asks a short list of questions about flow, capacity, access and failure, and the answers should be evidence: a calculation, a test, a model or a drawing, not an assurance.
Bulk materials handling is the engineering of moving solids in bulk: belt conveyors and their transfer chutes, feeders, bins and hoppers, stackers and reclaimers, ship and train loaders. It is the part of a mine or port that is in the way of every tonne, and a conveyor or chute that does not do its job limits the whole operation.
Most bulk handling failures are decided before any steel is cut. The chute that blocks every wet season was designed for a dry material. The conveyor that trips on surge was sized for the average. The stacker that cannot be inspected safely was never asked to be. In each case the designer worked from the brief they were given, and the brief was wrong or silent.
This guide is for the owner's side of that relationship. It covers what a design brief has to state, why the material is the part most briefs get wrong, what the standards are for and which to call up, and how to review a design against the brief without trying to redesign it.

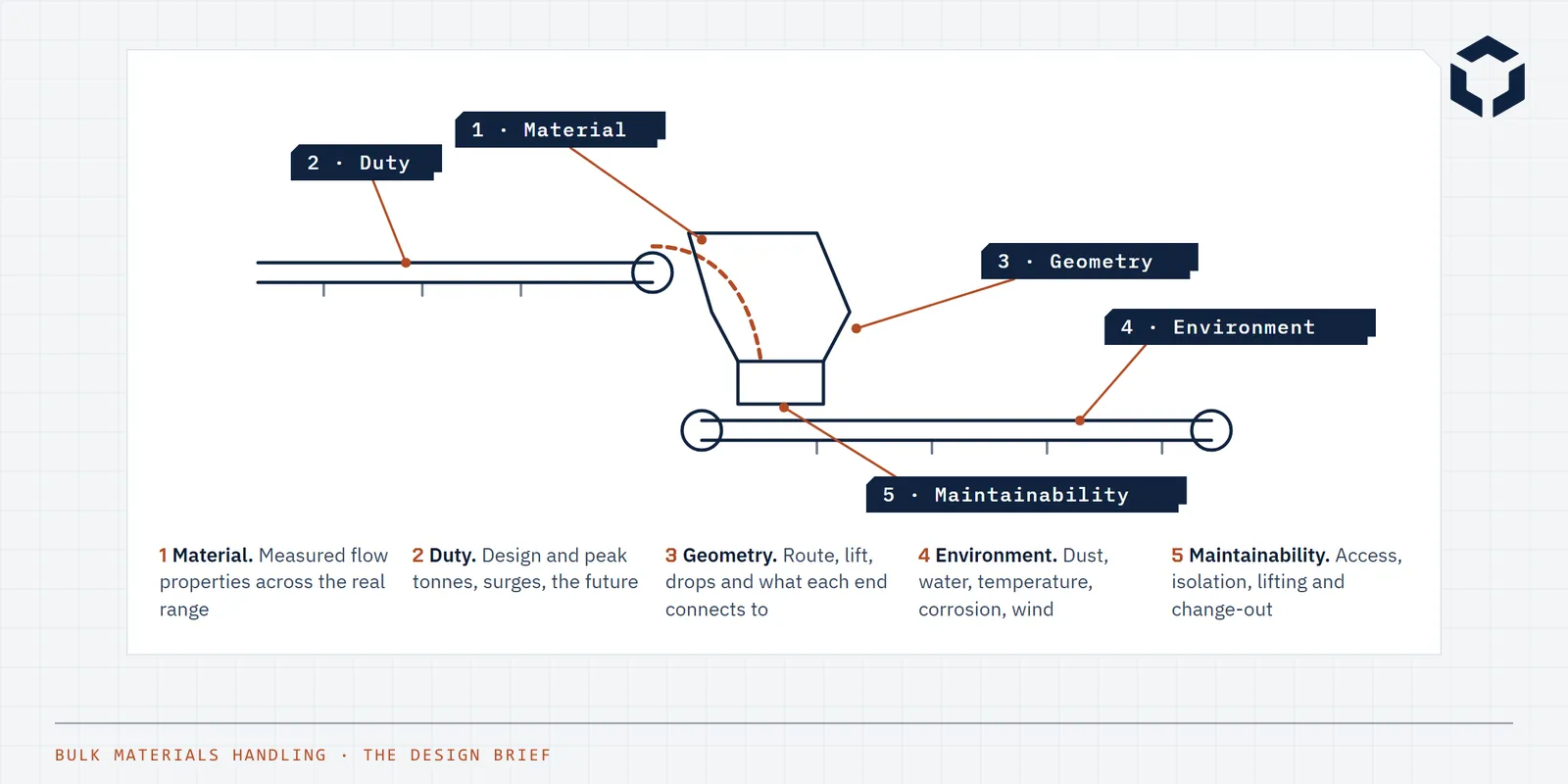

What a design brief has to say
A brief is the owner's half of the design. It is where the knowledge that only the site has, about the material, the duty and how the plant is run and maintained, gets into the designer's hands. The five areas below cover most of what goes wrong when they are missing.
- 1Material. Measured flow properties across the real range
- 2Duty. Design and peak tonnes, surges, the future
- 3Geometry. Route, lift, drops and what each end connects to
- 4Environment. Dust, water, temperature, corrosion, wind
- 5Maintainability. Access, isolation, lifting and change-out
| Area | What to state | What it decides |
|---|---|---|
| Material | Measured flow properties across the real moisture and size range, not a name and a density | Chute geometry, liner selection, hopper angles, belt cleaning, whether DEM is warranted |
| Duty | Design and peak throughput, surge behaviour, how often peaks occur, and the future duty the plant is likely to be asked for | Belt width and speed, drive sizing, structural loads, surge capacity |
| Geometry and interfaces | The route, lift, drop heights, what each end connects to and the tolerances of those interfaces | Trajectory, transfer design, belt tensions, where the stream lands |
| Environment | Dust, water, temperature, corrosion, wind, cyclone and seismic conditions, and the regulatory setting | Enclosure, materials, structural design, dust and spillage control |
| Maintainability | Access, isolation, lifting, component change-out, inspection routes and the site's maintenance strategy | Walkways, monorails, liner handling, idler access, instrumentation |
Everything the brief leaves out, the designer assumes. The assumption will be reasonable, and it will be wrong for your site.
The material is the part most briefs get wrong
A line in a specification that reads iron ore fines, bulk density 2.4, moisture eight per cent, is not a description of a material. It is a description of one state of a material that will arrive at anything from bone dry to saturated, with fines content that varies with the pit, the weather and the crusher settings. A chute designed for the specified state will flow beautifully in that state and plug in the others.
The remedy is measurement. Flow property testing puts numbers on how the material behaves under stress: internal friction and cohesion from a shear cell, wall friction against the liner materials actually being considered, bulk density under consolidation, and how each of these moves with moisture. The tests are cheap beside the plant they inform, and they are the only thing that lets a designer, or a DEM model, say what the chute will do on the wet day.
The brief should also say where the material comes from and how it changes. A new pit, a blend, a change in crusher gap or a washed product will all move the properties, and a design that has been told the range survives changes that a design built to a single point does not.
- Test samples from the real source across the moisture range the site actually sees, including the worst week of the wet season.
- Measure wall friction against every liner material on the shortlist, because the choice between them is often made on this number.
- State lump size and fines content as a distribution, with the conditions that shift it.
- Record what the existing plant does with the same material: where it blocks, wears and spills. That is the cheapest flow test there is.
Duty, and the difference between average and peak
Conveyors are sized for the tonnes that arrive, not the tonnes that are averaged. A plant with an average of two thousand tonnes an hour and a surge behaviour that delivers three thousand for ten minutes every time a truck tips needs the three thousand in its brief, with how often and for how long. Sizing on the average produces a belt that overloads and trips, or spills at the transfers, on a schedule the control room comes to know well.
The future belongs in the brief too. A belt that is one speed step from its next duty costs a little more at design and saves a replacement later. The owner knows what the mine plan asks of the plant in five years; the designer does not unless told.
The conveyor capacity calculator gives the owner a way to check whether a stated belt width and speed can carry the duty in the brief before the design review, using the same inputs the designer will.
What the standards are for, and which to call up
Design standards are the designer's references for method, loads and margins. The owner's part is to say which apply, because they differ, and to ask for the choice to be visible in the design. A conveyor calculated to CEMA and one calculated to ISO 5048 will not carry identical margins, and a structure designed to AS 4324.1 is assessed for fatigue and wind in a way an unspecified design may not be.
| Reference | What it covers | Call it up when |
|---|---|---|
| CEMA, Belt Conveyors for Bulk Materials | Belt conveyor design practice: capacities, tensions, idlers, drives, transfers | Any belt conveyor, as the most used design reference in Australian mining |
| ISO 5048 | Calculation of operating power and tensile forces for belt conveyors with carrying idlers | Where the owner's standard or an international project calls for the ISO method |
| AS 4324.1 | Steel structure design for bulk handling machines: stackers, reclaimers, ship loaders and unloaders | Any large bulk handling machine, including life extension of an existing one |
| AS 1755 | Conveyor safety requirements | Every conveyor, for guarding, isolation, pull wires and access |
| ISO 12100 | Safety of machinery, risk assessment and risk reduction | The risk assessment the design has to document |
| ASTM D6128 | Shear testing of bulk solids with the Jenike shear cell | Specifying the material flow property tests in the brief |
The brief names the standards. The design shows which were used and where. A review that cannot find that is reviewing a guess.
Maintainability is a design input
Most of the cost of a conveyor or chute over its life is maintenance, and most of that cost is set by access. Idlers that need a crane, liners that cannot be lifted out without cutting, inspection doors that open onto a running belt and a chute with no way to see inside it are all design decisions, and they are made by default when the brief is silent.
The brief should describe how the site maintains its plant: the shutdown cycle, how liners and idlers are changed, what lifting equipment exists, how isolation works and what inspection routes look like. A design told that chute liners are changed in a four hour window by two people with a monorail will look different from one that was not, and the difference shows up in every shutdown for twenty years.
Instrumentation belongs here too. Belt weighers, rip detection, bearing temperature on pulleys, chute level and blockage detection are far cheaper designed in than retrofitted, and the brief is where the site says which it wants, and which signals the control system and the condition monitoring program will take.
- State the shutdown cycle and the change-out methods for every wear part.
- Ask for inspection access to every transfer, with sight glasses or doors that are safe to open.
- Ask for liner handling to be designed, with the weights, the lifting points and the path out.
- List the instrumentation and the signals, and say what each connects to.
- Require the maintenance strategy and spares list as a design deliverable, not an afterthought.
Reviewing the design against the brief
The owner's review is not a redesign. It is a check that the design answers the brief, with evidence. A short set of questions covers most of it, and each answer should point at a calculation, a test, a model or a drawing rather than an assurance that it will be fine.
- Material: do the properties used in the design match the measured ones, across the range, and is the worst condition shown to work?
- Capacity: does the design carry the peak duty and the future duty, and what is the margin at each?
- Flow: has the transfer been shown to centre the stream, control its speed and avoid dead zones for the worst material, by model or by reference to a working design on the same material?
- Structure and safety: which standards were applied, and where is the risk assessment?
- Maintainability: can every wear part be changed in the stated window with the stated equipment, and can every transfer be inspected safely?
- Known failures: has each of the failures the existing plant suffers from been addressed explicitly, and how?
- Interfaces: do both ends agree with what they connect to, including tolerances and the control system?
If the answer to a review question is that the designer has done this many times, the brief has not been answered.
Common mistakes
- A material described by a name and a density, so the design works for one condition and fails in the rest.
- Duty stated as an average, so the belt trips or spills on every surge.
- No future duty in the brief, so the plant is replaced one speed step after it was built.
- Standards left to the designer, so nobody can say what margins the design carries.
- Maintenance access designed by default, paid for in every shutdown.
- Instrumentation retrofitted after the first failure that it would have caught.
- A review that redesigns instead of checking, so the brief is never tested and the liability moves.
- The existing plant's failure history left out of the brief, so the new design repeats it.
From brief to accepted design
Characterise the material
Flow property testing across the real range, from real samples.
Write the brief
Material, duty, geometry, environment and maintainability, with the standards named.
Design
The designer's work, to the named standards, with the choices visible.
Test the flow
Calibrated DEM or reference to a working design, for the worst material condition.
Review against the brief
Evidence for each question, and the known failures addressed by name.
Hand over the strategy
Maintenance strategy, spares and instrumentation delivered with the design.
Characterise the material
Flow property testing across the real range, from real samples.
Write the brief
Material, duty, geometry, environment and maintainability, with the standards named.
Design
The designer's work, to the named standards, with the choices visible.
Test the flow
Calibrated DEM or reference to a working design, for the worst material condition.
Review against the brief
Evidence for each question, and the known failures addressed by name.
Hand over the strategy
Maintenance strategy, spares and instrumentation delivered with the design.
Common questions
What is bulk materials handling?
Bulk materials handling is the engineering discipline concerned with moving, storing and loading solid materials in bulk: ore, coal, grain, fertiliser, aggregates and the like. Its equipment includes belt conveyors, transfer chutes, feeders, bins, hoppers and silos, stackers, reclaimers, ship loaders and train loading and unloading systems. The material's flow properties, the duty and the environment decide how each piece has to be designed.
What should a conveyor design brief include?
The material and its measured properties across the real moisture and size range, the design and peak throughput and how often peaks occur, the route with lift, length and any curves, the interfaces at each end, the environment including dust, water, temperature and access, the design life and the standards to be applied, and how the conveyor will be inspected and maintained, including access, isolation and component change-out.
Why do transfer chutes block?
Usually because the chute was designed for a material that is not the one it handles: a drier, coarser or more free-flowing version of it. Wet, sticky fines build up on surfaces where the stream slows or changes direction, and a chute that flows at design tonnage can plug at half rate in the wet. Geometry, liner choice and stream control are the design levers, and calibrated DEM modelling is the way to test them before fabrication.
Which standards apply to conveyor and bulk handling design?
In Australia the common references are the CEMA publications and ISO 5048 for belt conveyor design, AS 4324.1 for the steel structures of bulk handling machines such as stackers and reclaimers, AS 1755 for conveyor safety requirements, and ISO 12100 for machinery risk assessment. The brief should say which the designer is to apply, since they differ in method and in the margins they produce.
What is a material flow property test?
A set of laboratory measurements of how a bulk material behaves under stress: its internal friction and cohesion from a shear cell test, its wall friction against candidate liner materials, its bulk density, and how all of these change with moisture and consolidation. The results feed hopper and chute design directly and are what calibrate a DEM model. ASTM D6128 describes the Jenike shear cell method.
How do you review a bulk materials handling design?
Check it against the brief rather than redesign it. Confirm the material properties used match what was measured, that capacity holds across the operating range and not only at the design point, that the flow path has been shown to work for the worst material condition, that access, isolation and change-out have been designed in, and that the failure modes the site already suffers from have been addressed. Each answer should be a calculation, a test, a model or a drawing.
